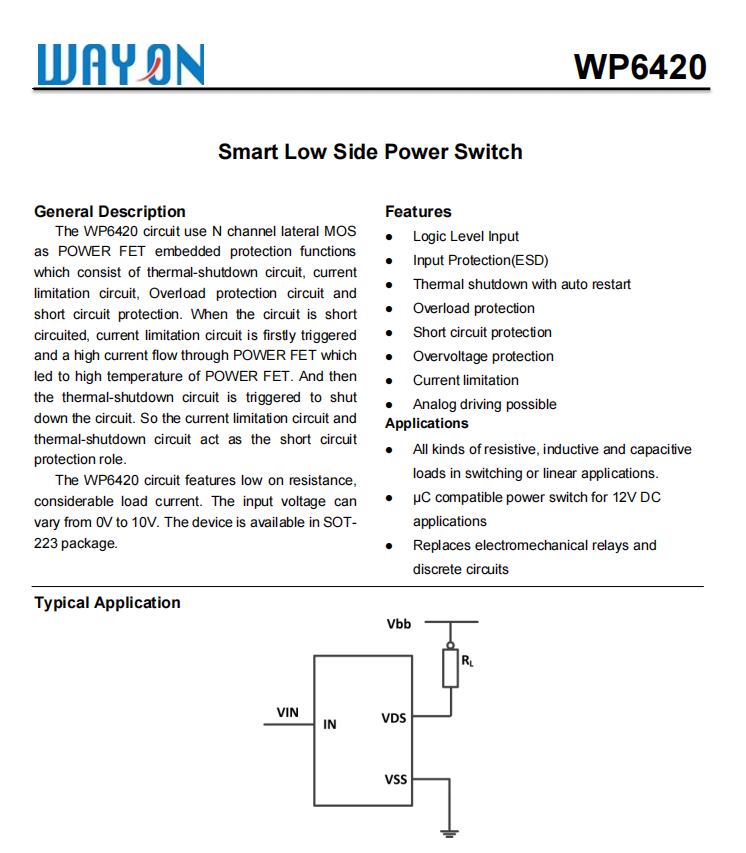

The WP6420 circuit use N channel lateral MoSas POWER FET embedded protection functionswhich consist of thermal-shutdown circuit，currentlimitation circuit,Overload protection circuit andshort circuit protection. When the circuit is shortcircuited，current limitation circuit is firstly triggeredand a high current flow through POWER FET whichled to high temperature of POWER FET.And thenthe thermal-shutdown circuit is triggered to shutdown the circuit. So the current limitation circuit andthermal-shutdown circuit act as the short circuitprotection role.

     WP6420電路采用N通道橫向MOSAS功率場效應管嵌入式保護功能，包括熱關機電路、電流限制電路、過載保護電路和短路保護電路。當電路短路時，首先觸發(fā)限流電路，大電流流過功率場效應管，導致功率場效應管高溫，然后觸發(fā)熱關斷電路關閉電路。因此，限流電路和熱停電路起著短路保護的作用.

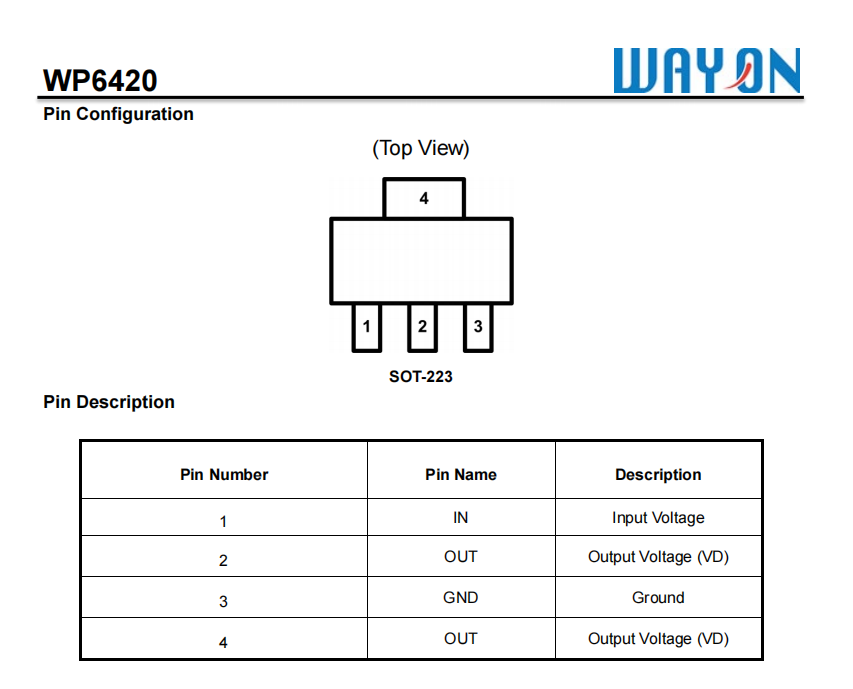

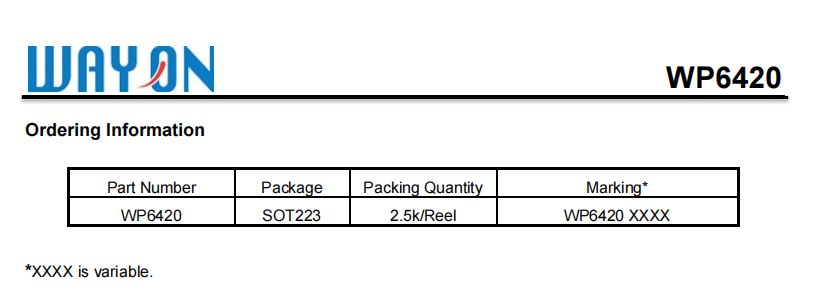

     The WP6420 circuit features low on resistance,considerable load current. The input voltage canvary from 0V to 10V.The device is available in sOT-223 package.

     WP 6420電路具有低的電阻，相當大的負載電流。輸入電壓可以在0V到10V之間變化，器件可以在St-223封裝中使用。

Features

特征

Logic Level lnput

邏輯電平輸入

Input Protection(ESD)

輸入保護(ESD)

Themal shutdown with auto restartOverload protection

帶自動重啟保護的熱關機

Short circuit protectionOvervoltage protectionCurrent limitation

短路保護過電壓保護電流限制

Analog driving possible

模擬驅(qū)動可能
